Currently, general-purpose small Robin gasoline engine (EY serie, EK serie, EX serie) as a daily operating tools, has been massively used by millions of households. Robin gasoline engine as agriculture and forestry plant protection machinery, small agricultural equipment, garden machinery, generator sets, construction machinery, outboard machinery and other supporting power. Especially in the backpack machinery, general-purpose Robin small gasoline engine is the main supporting power. Due to the general small gasoline engine's features of small size, light weight, friendly price, easy to use, small gasoline engine is the first choice of various machine tools.

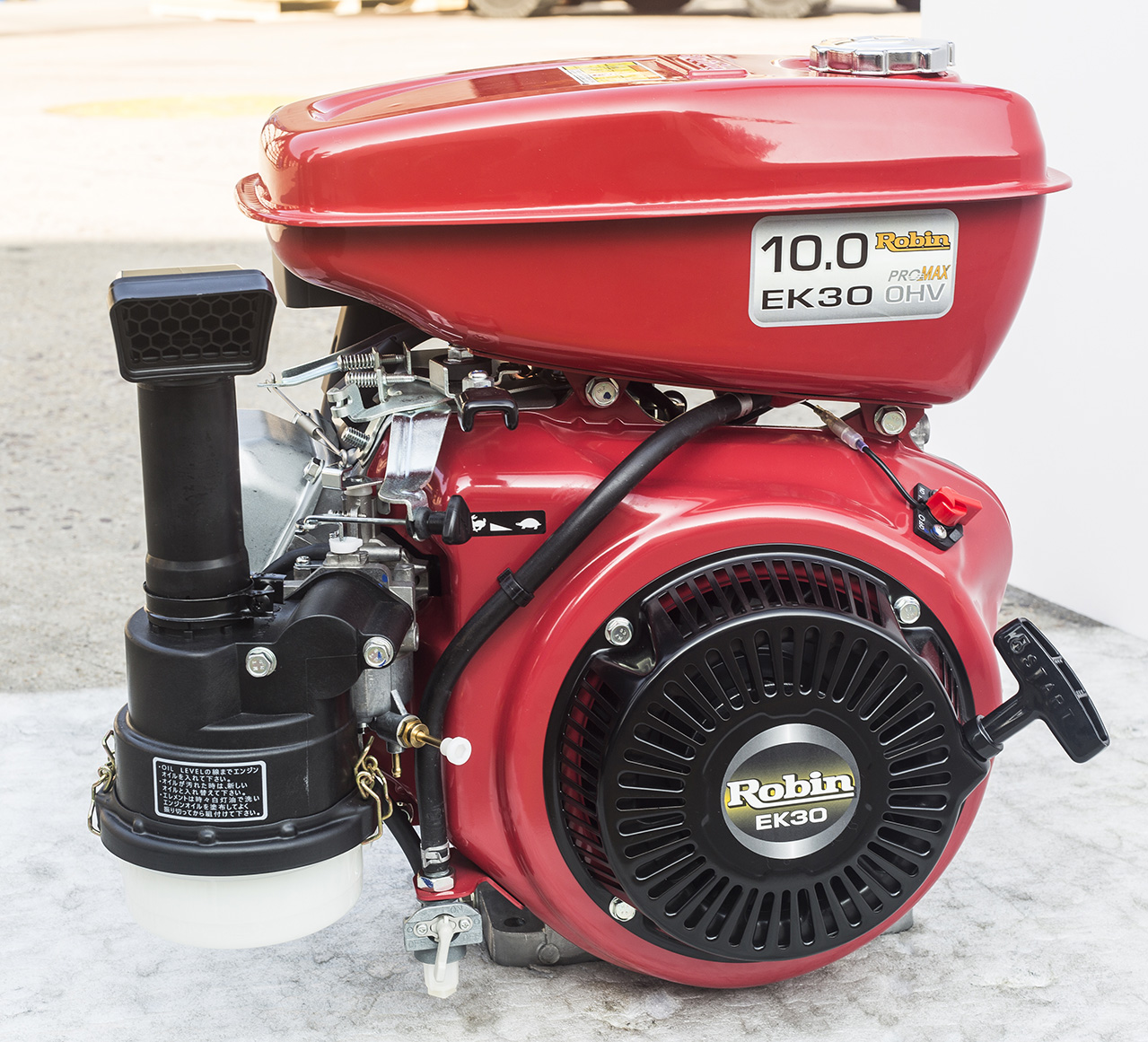

ROBIN EK30
# Precautions for use
After the purchase of the new machine, in order to work normally and reliably, extend the service life, reduce maintenance costs, improve work efficiency, the use of the following points should be noted:
1. Carefully read the instruction manual to understand the structural characteristics of the product and the scope of use.
2. Before the initial operation of the new machine should be strictly in accordance with the provisions of the instruction manual for fuel blending or filling the prescribed fuel grade and oil grade. Oil should be filtered before filling, keep the vessel clean, avoid impurities on the cylinder and piston wear. Regular oil replacement to ensure good lubrication and heat dissipation.
3. Strictly in accordance with the nameplate labeling of the power for matching, strictly prohibit overload, over speed, high speed with no load or long-term low load, low speed operation.
4. Check the fasteners regularly to prevent the body damage and personal safety caused by loosening.
5. Clean the air filter regularly and replace it if necessary. The air filter is the key component to stop dust and affect the mixture concentration, do not remove the air filter for operation.
6. Forced air-cooled gasoline engine heat sinks, cooling channels, fans and other important parts of the gasoline engine normal heat dissipation and operation, should always be kept clean, remove dirt in a timely manner, to avoid overheating and cause body damage.
7. In the technical conditions allowed, regular inspection and maintenance of gasoline engines are essential as well, such as cleaning carburetor, adjust the spark plug gap and remove carbon deposits, adjust the valve lash, check the degree of wear and tension of the piston ring, etc., found that the problem should be eliminated in a timely manner, to avoid working with the "injury", in order to reduce unnecessary fuel loss and shorten the service life.
8. For high temperature, high-turn parts of the safety protection should be maintained in a normal state, in order to avoid causing unnecessary personal injury.
ROBIN EH12
# Gasoline engine storage precautions
Gasoline engines work seasonally in rural areas and are used for only a short month or two a year, the rest of the time they are basically stored at home. Scientific storage is also an important part of maintaining a gasoline engine. For gasoline engine storage should pay attention to the following points:
1. Drain the fuel tank, carburetor fuel. Avoid residual fuel from staying for a long time and produce gelling, blocking the fuel channel and carburetor oil channel, bonding float needle and so on.
2. Take out the spark plug, drop in a few drops of clean oil and pull a few times, to form a layer of mucous membrane at inner side of the cylinder. (At this time, you should turn off the ignition switch, if there's no ignition switch, should pay attention to the high-voltage ignition line to avoid high-voltage electric shock). If conditions permit, you can also take down the cylinder head with a slice to remove the carbon in the combustion chamber.
3. Clean the carburetor and air filter. Carburetor and air filter disassembled, respectively, into a clean vessel containing clean pure gasoline cleaning, clean and remove to be its natural volatility and air-drying installation restoration.
4. Remove the body, especially the accumulated dust on the heat sink. After cleaning, use a little bit of oil to apply to the surface of metal parts to avoid rust and oxidation.
5. Gasoline engine box should be placed in a dry, ventilated place for storage.

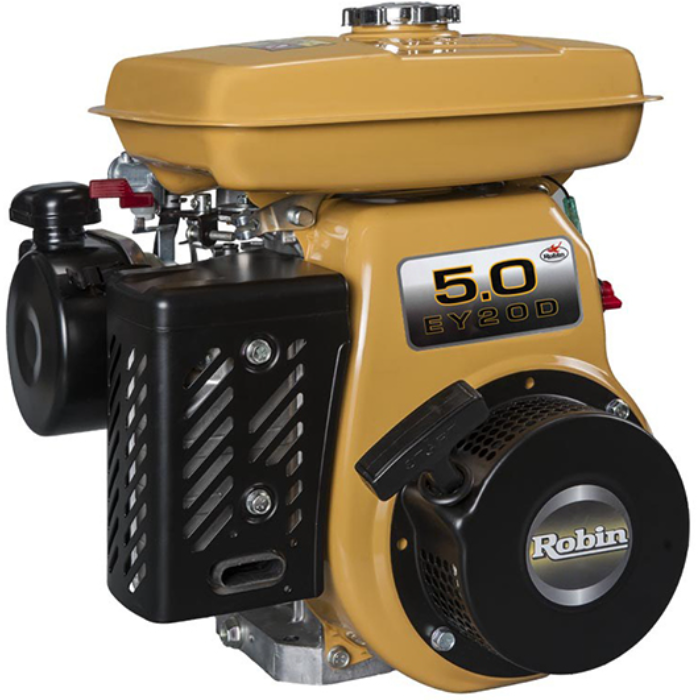

ROBIN EY20
# Robin Gasoline Engine Product Applications
The small four-stroke gasoline engine produced by Robin is suitable for a wide range of agricultural machinery, small engineering machinery, road maintenance machinery, plant protection machinery, garden machinery, water pump units, generator sets and other ranges. It's light weight, high power, low noise, low pollution characteristics, will provide customers with the best supporting power.
