Robin construction machines are gasoline-powered equipment built for soil compaction and concrete finishing, supplied as complete machines with the engine installed, matched and ready to work. The range covers the two machine types that every small construction contractor needs on site: the SRM gasoline tamping rammer for soil compaction and ground preparation, and the SRT gasoline concrete power trowel for finishing concrete floors and slabs.
Both machines run on Robin gasoline engines, which is where the performance comes from. The rammer carries the Robin EH12D, and both power trowel models carry the Robin EK17D — engines designed for shock load and continuous rotary load respectively, rather than adapted from a general-purpose lawn and garden line. Because both are gasoline powered, they work on open construction sites and large outdoor slabs where electrical infrastructure is limited or inconvenient.
We supply in wholesale and OEM sales models, with customization available for bulk orders and a minimum order quantity of 1 unit. Spare parts for the engine range are held in stock, and technical documentation, engine selection advice and after-sales service are available to distributors, importers and equipment dealers worldwide.

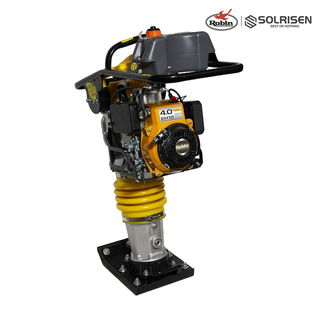

The SRM gasoline tamping rammer is built for soil compaction, ground preparation, foundation preparation, road construction, trench compaction and backfill work. It delivers a 12 kN impact force through a percussion rate of 450–660 blows per minute and a 40–65 mm jumping stroke, which is the repeated impact action that compacts fill material and closes voids in a trench or under a slab edge.
Its proportions are built for working conditions rather than for the workshop. The 340 × 285 mm compaction shoe and 770 × 400 × 1070 mm machine size let the operator work in trenches and tight access areas, the 2.8 L fuel tank gives enough running time between refills, and the ergonomic grip reduces hand and arm fatigue during long compaction passes. Routine maintenance features and user-friendly safety provisions keep daily site servicing straightforward.
| SPECIFICATION | TAMPING RAMMER |
| Engine | Robin EH12D gasoline engine |
| Power | 3.0 kW / 4.0 hp |
| Impact force | 12 kN |
| Percussion rate | 450–660 per min |
| Jumping stroke | 40–65 mm |
| Compaction shoe | 340 × 285 mm |
| Machine size (L × W × H) | 770 × 400 × 1070 mm |
| Fuel tank capacity | 2.8 L |
| Sales models | Wholesale and OEM |
| Minimum order | 1 |
The SRT gasoline concrete power trowel is built to smooth, level and finish concrete after it has been placed and prepared. The rotating finishing system covers larger working areas in less time than manual finishing, and on a commercial pour or a residential slab it is the difference between finishing a section in an afternoon and finishing it in a morning.
Both models run the same Robin EK17D gasoline engine with the same 4.4 kW / 6.0 hp output. They differ in working size, so the right model depends on the area and the handling conditions. The SRT24-3 has a 24-inch (60 cm) rotor, a 24-inch (61 cm) guard and an operating mass of 59 kg (130 lbs), which makes it easier to manoeuvre on confined pours and narrower form work. The SRT36-3 steps up to a 36-inch (91 cm) rotor, a 37-inch (94 cm) guard and an operating mass of 80 kg (176 lbs), giving wider surface coverage per pass where large slabs are involved.
| SPECIFICATION | SRT24-3 | SRT36-3 |
| Engine | Robin EK17D | Robin EK17D |
| Power | 4.4 kW / 6.0 hp | 4.4 kW / 6.0 hp |
| Rotor diameter | 60 cm / 24 in | 91 cm / 36 in |
| Guard diameter | 61 cm / 24 in | 94 cm / 37 in |
| Operating mass | 59 kg / 130 lbs | 80 kg / 176 lbs |
| Sales models | Wholesale and OEM | Wholesale and OEM |
| Customization | Available for bulk orders | Available for bulk orders |
The engine is the machine. Each Robin construction machine is built around a power unit selected for the way that machine loads the engine, and that selection is visible in the specification sheet you hand to an OEM customer.
The EH12 is the classic 4 hp Robin engine: air-cooled, four-stroke, single cylinder with an overhead valve arrangement and a horizontal PTO shaft, and the D variant is the unit fitted to the SRM tamping rammer. Displacement is 121 cc with a 60 × 43 mm bore and stroke, output is 2.1 kW (2.9 PS) continuous at 3600 rpm with 4 hp maximum, and dry weight is 15.9 kg with an effective oil charge of 200 cc.
For a rammer, what matters is what happens at the crankshaft when the machine hammers the ground. The EH12 is a single-cylinder engine with a horizontal output shaft, a recoil starter, a governor, a flywheel magneto ignition system and a low-oil sensor as standard. The low-oil sensor in particular matters on a compaction machine: it allows the machine to be built with automatic engine shut-down protection rather than leaving it as a retrofit, which is what a rental fleet or a safety-conscious contractor will ask for. The service manual and parts manual for this engine are downloadable, so a service technician can work on the power unit without waiting for documentation.
The EK17D is the 6 hp member of the EK series and the engine behind both power trowel models. It is an air-cooled, four-stroke, slant single cylinder OHV engine with a horizontal PTO shaft, 169 cc displacement and a 67 × 48 mm bore and stroke. Output is 3.2 kW (4.3 PS) continuous at 3600 rpm, 4.4 kW (6.0 PS) maximum at 4000 rpm, and peak torque is 11.6 N·m at 2600 rpm. Net weight is 17.2 kg and overall dimensions are 318 × 359 × 365 mm.
A power trowel rotates a large blade at controlled speed for long periods, and it does it while an operator is holding the handles, so vibration control matters as much as output. The EK17D is built around a hemispherical combustion chamber and a V-type valve structure, with a low centre of gravity and low vibration, and the optimized cooling system reduces engine heat load during long finishing passes. The transistorized ignition, centrifugal flyweight governor, dry air filter and mechanical splash lubrication keep running quality consistent and routine service simple in the field, and the unique decompression mechanism makes starting easy from cold. The hemispherical chamber and V-type valve layout meet the emission requirements of North America, Europe and China, so the finished trowel can be exported and certified without rework.

The two machines sit at different points in a construction schedule, and the compaction step always comes first. A tamping rammer is for fill, sub-base, trench and backfill work — anything that needs to be consolidated before a structure goes on top of it. A power trowel is for the finish: it works on concrete that has already been placed, struck off and levelled, and it produces the flat, smooth surface that a floor is judged on. Contractors usually need both, and because both run on the same Robin engine family, service training and spare parts are shared across the fleet.
The SRT24-3 is the better choice where access is restricted, the pour is narrow or the operator needs to move the machine around obstacles — at 59 kg it is manageable for a single operator in a confined area. The SRT36-3 is the better choice on large open slabs, where the 36-inch rotor covers noticeably more surface per pass and the 80 kg operating mass is an advantage on a long run. If a customer says “we finish big slabs”, quote the 36-inch; if they say “we work in narrow buildings”, quote the 24-inch.
Gasoline construction machines are lighter, cheaper to buy and easier to start, and they suit short-duration rental work, landscaping and general site work. Diesel units typically suit longer duty cycles where fuel economy and continuous running matter. For most small contractors and rental fleets, the gasoline configuration in this range is the more economical machine to ship, service and turn over.
Engine and machine are designed as one set. The power unit is matched to the machine's load — impact for the rammer, continuous rotary duty for the trowel — instead of being fitted afterwards.
Global approvals in place. EPA and CE emission certificates, plus RoHS, ISO9001 and BSCI, so the machines can be exported and certified without rework.
Consistent build quality. Additional quality testing is carried out before shipment, and production has been running since the company was established in 1956.
Parts and service backup. Spare parts for the whole engine range are held in stock, and engine service and parts manuals are downloadable, which protects the end customer's machine and reduces distributor service friction.
Engineering support. Engine and machine selection advice, technical documentation, maintenance and repair service for wholesale and dealer partners.
Robin Power supplies complete construction machines to distributors, importers, contractors and OEM equipment builders. We can provide full specifications, downloadable service and parts manuals, sample units for testing, customized configurations for bulk orders, and long-term spare parts supply under a stable cooperation agreement.
The SOLRISEN Construction Catalogue and the full Robin engine catalogue are available for download on our download page. If you are sourcing a tamping rammer or a concrete power trowel for distribution, tell us the target machine type, quantity and destination market and we will recommend the most suitable model and supply configuration.
The SRM tamping rammer is equipped with a Robin EH12D gasoline engine rated at 3.0 kW / 4.0 hp, driving a 12 kN impact force at 450–660 blows per minute with a 40–65 mm jumping stroke.
Both the SRT24-3 and SRT36-3 power trowels are powered by the Robin EK17D gasoline engine with 4.4 kW / 6.0 hp rated power.
They use the same Robin EK17D engine with the same 4.4 kW / 6.0 hp output. The SRT24-3 has a 24-inch (60 cm) rotor and a 59 kg operating mass for easier handling, while the SRT36-3 has a 36-inch (91 cm) rotor and an 80 kg operating mass for wider surface coverage.
It is used for soil compaction, ground preparation, foundation preparation, road construction, trench compaction and backfill work — anywhere fill material needs to be consolidated with repeated impact before construction continues.
Robin small engines hold EPA emission certification for the United States and CE certification for the European Union, together with RoHS, ISO9001 and BSCI. The EK17D hemispherical combustion chamber and V-type valve structure meet the emission requirements of North America, Europe and China.
Yes. Both machines are offered in wholesale and OEM sales models, with customization available for bulk orders and a minimum order quantity of 1 unit.
Send us your target machine type, quantity and destination market. The Robin team will reply with specifications, a wholesale quotation and available cooperation terms.
