PTS
Solrisen
Self-priming,Centrifugal pump
32m
8m
| Quantity: | |
|---|---|
A reliable water pump is essential for efficient irrigation, water transfer, drainage and general water supply. Our 2 inch gasoline water pump is designed for users who need a portable and efficient solution for moving clean water without relying on an external power supply.
Equipped with a self-priming centrifugal pump and a reliable air-cooled 4-stroke gasoline engine, this pump delivers a maximum water flow of up to 600 L/min and a total head of 32 meters. With a compact structure and recoil starting system, it is suitable for agricultural, residential, commercial and outdoor water transfer applications.
The 2 inch inlet and outlet design provides a practical balance between water flow, portability and ease of operation, making this gasoline water pump a versatile choice for a wide range of clean water pumping tasks.
This gasoline water pump features 2 inch suction and delivery diameters, providing an efficient water passage for irrigation and water transfer applications.
The 2 inch connection size is widely used for agricultural irrigation, water supply and general water transfer. It also makes the pump easy to integrate with commonly used hoses, couplings and accessories.
With a maximum delivery volume of 600 L/min, the pump can move a substantial amount of clean water in a relatively short period of time.
The pump uses a self-priming centrifugal pump design for convenient operation and efficient water transfer.
A self-priming pump can remove air from the suction line after the initial priming process, helping the pump establish water flow more easily. This design is particularly useful for outdoor applications where the pump may need to be installed and operated at different locations.
The centrifugal pump structure also provides a practical solution for continuous clean water transfer and irrigation.

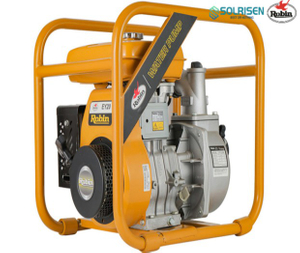

The pump is powered by a Robin air-cooled 4-stroke gasoline engine designed to provide reliable power for water pumping applications.
The gasoline engine allows the pump to operate independently from an electrical power source. This makes it suitable for farms, construction areas, gardens and other locations where grid electricity may not be readily available.
The engine uses automotive unleaded gasoline as fuel and features a recoil starter for straightforward starting.
The maximum delivery volume reaches 600 L/min, providing strong water transfer capability for a 2 inch pump. This flow capacity makes the pump suitable for applications such as:
Agricultural irrigation
Garden irrigation
Clean water transfer
Water tank filling
General water supply
Outdoor water transfer
Farm water management
The 2 inch gasoline water pump provides a total head of up to 32 meters.
Total head is an important specification when selecting a water pump because it indicates the maximum vertical pumping capability under specified conditions. A suitable combination of flow rate, pipe size and pumping head helps users achieve efficient water transfer.
For irrigation and general water transfer applications, the 32 meter total head provides useful flexibility for moving water across different elevations.
The pump has a maximum suction head of 8 meters.
This allows the pump to draw water from a lower-level water source when the installation conditions are suitable. Proper hose selection, airtight connections and correct installation are important for maintaining effective suction performance.
For best results, the suction hose should be properly connected and positioned to minimize air leakage and unnecessary resistance.

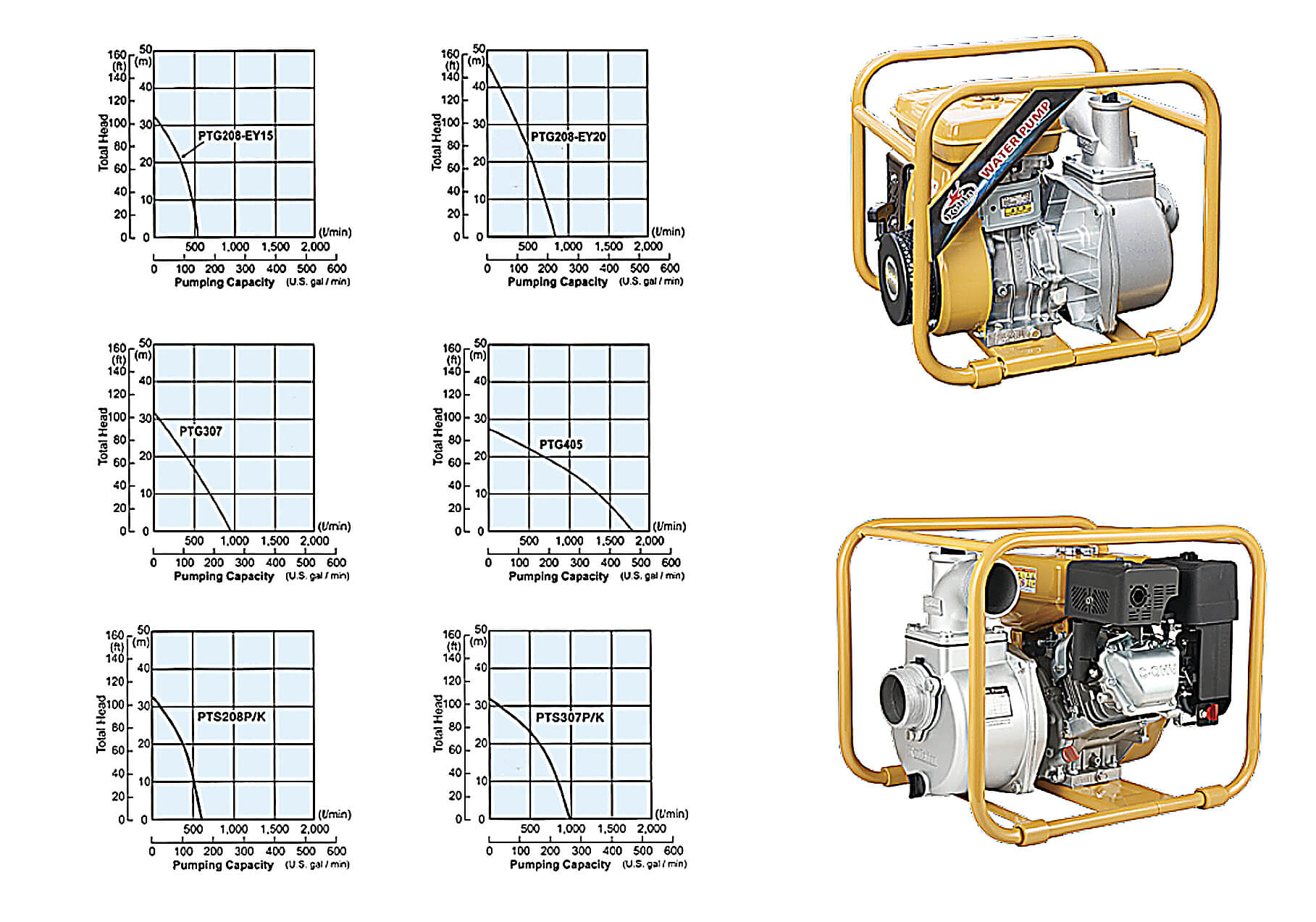

The following specifications are based on the available PTS208P and PTS208K models.
| SPECIFICATION | PTS208P | PTS208K |
|---|---|---|
| Pump Type | Self Priming Centrifugal Pump | Self Priming Centrifugal Pump |
| Suction Diameter | 2 Inch | 2 Inch |
| Delivery Diameter | 2 Inch | 2 Inch |
| Total Head | 32 m | 32 m |
| Maximum Delivery Volume | 600 L/min | 600 L/min |
| Suction Head | 8 m | 8 m |
| Mechanical Seal | Ceramic Carbon | Ceramic Carbon |
| Engine | Robin Air Cooled 4 Stroke Gasoline Engine | Robin Air Cooled 4 Stroke Gasoline Engine |
| Fuel | Automotive Unleaded Gasoline | Automotive Unleaded Gasoline |
| Fuel Tank Capacity | 3.7 L | 3.7 L |
| Starting System | Recoil Starter | Recoil Starter |
| Dimensions L × W × H | 530 × 400 × 430 mm | 530 × 400 × 430 mm |
| Net Weight | 29.6 kg | 29.6 kg |
The combination of a 2 inch pump connection, gasoline engine and self-priming centrifugal design makes this water pump suitable for a variety of clean water applications.
Agricultural irrigation is one of the most common applications for a gasoline water pump.
The pump can transfer clean water from sources such as tanks, reservoirs and other suitable water sources to irrigation systems. Its gasoline-powered design allows farmers and agricultural workers to use the pump in locations where electrical power may be unavailable.
The 600 L/min maximum delivery volume provides useful water transfer capacity for small and medium-scale irrigation tasks.
The compact design of this 2 inch water pump also makes it suitable for garden and landscape irrigation.
It can be used to transfer water from storage tanks or suitable water sources to hoses and irrigation equipment. The gasoline engine provides independent operation, which is convenient for outdoor areas without a convenient electrical connection.
The pump is designed for clean water pumping and transfer.
Typical applications include moving water between tanks, reservoirs and other suitable containers. It can also be used for general water supply tasks where a gasoline-powered pump is preferred.
For reliable operation, the pumped water should meet the manufacturer's requirements for clean water. The pump should not be used for liquids containing large amounts of solids, abrasive materials or unsuitable chemicals.
One of the main advantages of a gasoline water pump is its independence from electrical power.
Unlike an electric water pump, this type of pump does not require a nearby electrical outlet during operation. This makes it particularly useful for agricultural fields, remote areas and outdoor locations.
With dimensions of approximately 530 × 400 × 430 mm, the pump has a relatively compact structure for transportation and installation.
Its gasoline engine allows users to move the pump between different working locations according to their needs.
The pump uses a recoil starter, providing a straightforward mechanical starting system.
This avoids the need for an external electrical starting system and keeps the operating structure relatively simple.
The gasoline engine is equipped with a 3.7 L fuel tank, providing a practical fuel capacity for a portable water pumping system.
Actual operating time depends on engine load, operating conditions and fuel consumption.
Correct installation and operation are important for achieving reliable pumping performance.
Before operation, inspect the pump, engine, hoses, connections and fuel system.
Make sure all connections are secure and check that there are no visible fuel leaks or damaged components.
Connect a suitable 2 inch suction hose to the pump inlet.
The suction connection should be airtight because air leakage can reduce suction performance and make it difficult for the pump to establish water flow.
Connect the delivery hose to the pump outlet and make sure the hose is properly secured.
Avoid unnecessary bends or restrictions in the hose because they can increase flow resistance and affect pumping performance.
Because this is a self-priming centrifugal pump, the pump should be correctly primed according to the operating instructions before starting.
Proper priming helps the pump establish water flow and prevents unnecessary dry running.
Check the fuel supply and start the engine using the recoil starter.
Allow the engine to operate according to the recommended procedure before applying normal pumping conditions.
During operation, monitor water flow, engine performance and the condition of the hoses and connections.
Do not allow the pump to operate without water when the operating instructions prohibit dry running.
Check the Engine Oil | Check the engine oil level regularly and replace the oil according to the engine manufacturer's maintenance schedule. Proper lubrication is essential for reliable 4-stroke gasoline engine operation. |
Keep the Air Filter Clean | The engine's air filter should be inspected and cleaned or replaced as recommended. A clean air filter helps the engine receive sufficient air for efficient combustion. |
Inspect the Fuel System | Check the fuel tank, fuel lines and connections regularly. Use the recommended automotive unleaded gasoline and avoid using contaminated or unsuitable fuel. |
Check Hoses and Connections | Inspect the suction and delivery hoses before operation. Make sure hose connections are tight and free from air leaks, cracks or other damage. |
Inspect the Mechanical Seal | The pump uses a ceramic-carbon mechanical seal. Regular inspection can help identify potential leakage or wear at an early stage and ensure the pumping system continues to operate properly. |
| COMPARISON | GASOLINE WATER PUMP | ELECTRIC WATER PUMP |
|---|---|---|
| Power Source | Gasoline engine | Electricity |
| Power Supply | Does not require a fixed electrical connection | Requires a stable electrical power supply |
| Portability | Easy to move between different locations | More dependent on the location of the power source |
| Outdoor Use | Well suited for farms, fields and outdoor work areas | Best suited for locations with convenient electrical access |
| Remote Applications | Suitable for remote areas without grid electricity | Limited where electrical power is unavailable |
| Operation | Suitable for flexible outdoor pumping tasks | Convenient for fixed pumping locations |
| Noise Level | Generally higher due to gasoline engine operation | Generally quieter during operation |
| Best For | Irrigation, water transfer and outdoor applications | Residential, commercial and fixed water transfer applications |
Choosing the right gasoline water pump depends on several important specifications, including pump size, water flow, total head, suction head and engine type. Understanding these specifications can help you select a pump that matches your irrigation, water transfer or outdoor pumping requirements.
| SPECIFICATION | DETAILS | WHY IT MATTERS |
|---|---|---|
| Pump Size | 2 inch suction and delivery diameter | Provides a practical balance between water flow capacity and portability. Make sure the hose and pipe sizes are compatible with the pump connections. |
| Flow Rate | 600 L/min maximum | Determines how much water the pump can transfer within a given period. Select the pump according to your required water volume and application. |
| Total Head | 32 m maximum | Indicates the pump's maximum lifting capability and is important when water needs to be transferred across different elevations. |
| Suction Head | 8 m maximum | Allows the pump to draw water from a suitable source located below the pump installation point. Actual performance depends on installation conditions. |
| Engine and Fuel | Robin air-cooled 4-stroke gasoline engine | Provides an independent power source without requiring a fixed electrical connection, making the pump suitable for outdoor and remote applications. |
Our 2 inch gasoline water pump combines a practical pump configuration with a reliable gasoline engine to provide a flexible solution for clean water transfer. Key advantages include:
2 inch suction and delivery connections
Self-priming centrifugal pump design
Maximum flow of 600 L/min
Total head up to 32 m
Suction head up to 8 m
Robin air-cooled 4-stroke gasoline engine
3.7 L fuel tank
Recoil starting system
Ceramic-carbon mechanical seal
Compact dimensions of 530 × 400 × 430 mm
Suitable for agricultural and outdoor applications
Frequently Asked Questions About 2 Inch Gasoline Water PumpsA 2 inch gasoline water pump is commonly used for clean water transfer, agricultural irrigation, garden irrigation, water tank filling and general outdoor water supply.
The maximum delivery volume of the PTS208P and PTS208K models is 600 L/min under specified conditions.
The specified total head is 32 meters, while the maximum suction head is 8 meters.
Actual performance depends on the installation, hose configuration and operating conditions.
No. The pump is powered by a gasoline engine, so it does not require an external electrical power supply during operation.
The engine uses automotive unleaded gasoline.
Yes. This model is designed for clean water pumping and transfer. It should not be used for liquids containing excessive solids, abrasive materials or unsuitable chemicals.
Both PTS208P and PTS208K are 2 inch models with the same listed pump specifications, including a 600 L/min maximum delivery volume, 32 m total head and 8 m suction head. The corresponding engine models are EP20D and EK20D.
For detailed configuration differences, please refer to the specific model specification provided by the manufacturer.
For agricultural irrigation, outdoor water transfer and general clean water applications, a reliable pump should provide sufficient flow, suitable pumping head and convenient operation.
Our 2 inch gasoline water pump combines a self-priming centrifugal pump with a Robin air-cooled 4-stroke gasoline engine. With a maximum flow of 600 L/min, total head of 32 m and suction head of 8 m, it provides a practical solution for users who need efficient water transfer without depending on an electrical power supply.
The compact design, recoil starter, 3.7 L fuel tank and 2 inch pump connections make this gasoline water pump suitable for a wide range of agricultural, residential, commercial and outdoor applications.
If you are looking for a 2 inch gasoline water pump for irrigation, water transfer or general clean water applications, contact us for detailed specifications, model information and wholesale purchasing options.
